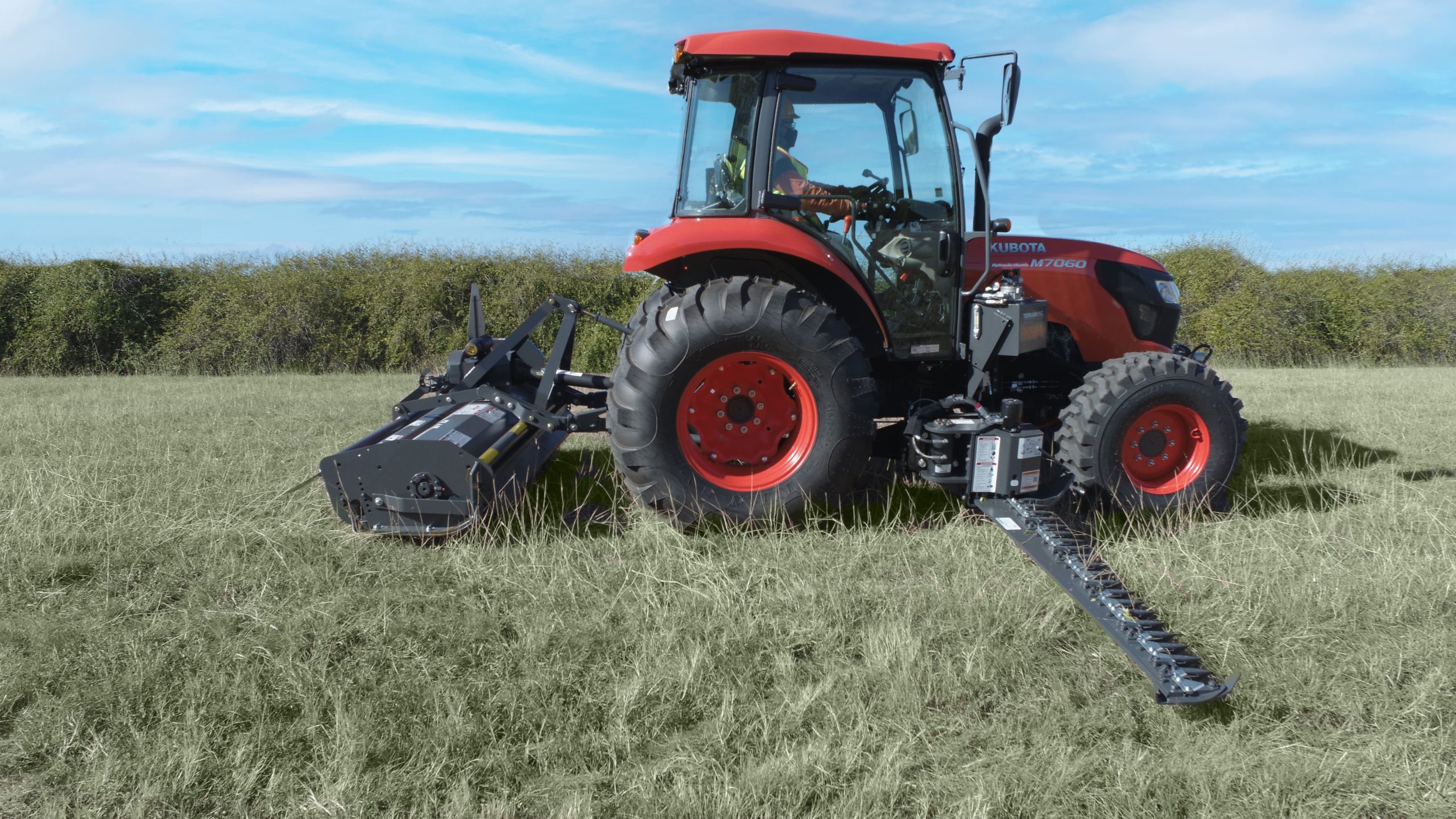

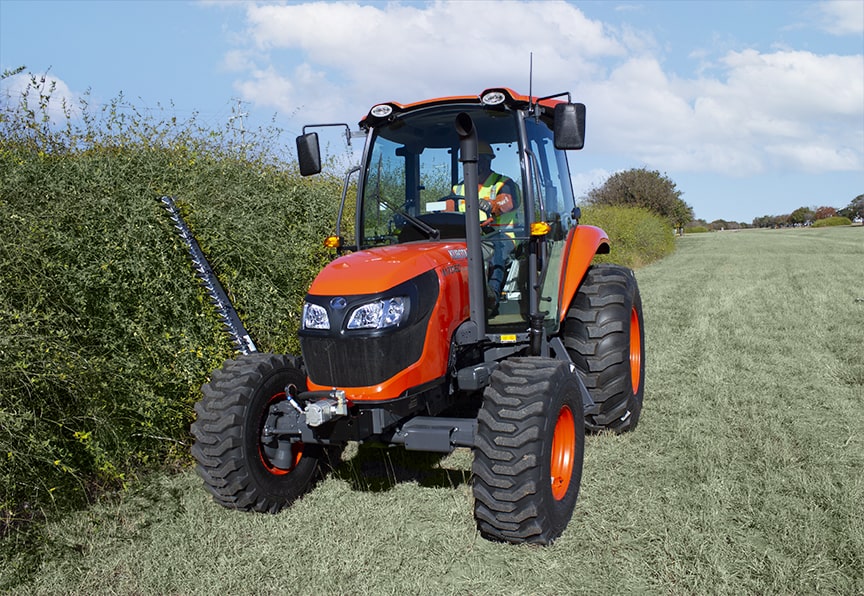

KSB5/KSB6 Sickle Bar

KSB banner for heavy-duty flail mower product promotion

The KSB5/KSB6 is a cost-effective way for small tractors to conquer the roadside with a fast and simple design that allows for small tractor use. Go with the most economical industrial mower on the market to conquer the roadside.

– Cutting capacity: grass & light brush, up to 1/2” in diameter
– Operator station features a dual-axis joystick control, master cutoff switch, and blade reverser switch to clear knife jams
– Hydraulic breakaway system can be reset with a simple movement of the joystick
– Mechanical safety transport lock secures the cutter head while in transport position
– Rigid subframe spans from the front bolster to the rear axle

SPECIFICATIONS

Cutting capacity
Available cutting widths
Optional equipment
Tilt angle
Safety
1/2″ diameter
5′ and 6′
Knife holder brackets Ag shoe and swath board Pump guard kit special paint
The tilt angle of 90° up and 75° down
The unit features an automatic, breakaway system that allows the cutter bar to hinge when obstructed
